Cairo::Gradient Class Reference

#include <cairomm/pattern.h>

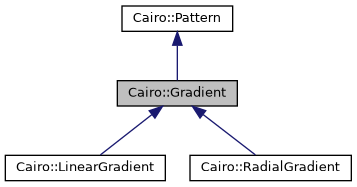

Inheritance diagram for Cairo::Gradient:

Public Member Functions
	Gradient (cairo_pattern_t *cobject, bool has_reference=false)
	Create a C++ wrapper for the C instance. More...
	~Gradient () override
void	add_color_stop_rgb (double offset, double red, double green, double blue)
	Adds an opaque color stop to a gradient pattern. More...
void	add_color_stop_rgba (double offset, double red, double green, double blue, double alpha)
	Adds a translucent color stop to a gradient pattern. More...
std::vector< ColorStop >	get_color_stops () const
	Gets the color stops and offsets for this Gradient. More...
Public Member Functions inherited from Cairo::Pattern
	Pattern (cairo_pattern_t *cobject, bool has_reference=false)
	Create a C++ wrapper for the C instance. More...
	Pattern (const Pattern &)=delete
Pattern &	operator= (const Pattern &)=delete
virtual	~Pattern ()
void	set_matrix (const Matrix & matrix)
	Sets the pattern's transformation matrix to @matrix. More...
void	get_matrix (Matrix & matrix) const
	Returns the pattern's transformation matrix. More...
Matrix	get_matrix () const
	Returns the pattern's transformation matrix. More...
Type	get_type () const
	Returns the type of the pattern. More...
void	set_extend (Extend extend)
	Sets the mode to be used for drawing outside the area of a pattern. More...
Extend	get_extend () const
	Gets the current extend mode See Cairo::Extend for details on the semantics of each extend strategy. More...
cobject *	cobj ()
const cobject *	cobj () const
void	reference () const
void	unreference () const

Protected Member Functions
	Gradient ()
Protected Member Functions inherited from Cairo::Pattern
	Pattern ()

Additional Inherited Members
Public Types inherited from Cairo::Pattern
enum class	Type {   SOLID = CAIRO_PATTERN_TYPE_SOLID ,   SURFACE = CAIRO_PATTERN_TYPE_SURFACE ,   LINEAR = CAIRO_PATTERN_TYPE_LINEAR ,   RADIAL = CAIRO_PATTERN_TYPE_RADIAL }
	Type is used to describe the type of a given pattern. More...
enum class	Extend {   NONE = CAIRO_EXTEND_NONE ,   REPEAT = CAIRO_EXTEND_REPEAT ,   REFLECT = CAIRO_EXTEND_REFLECT ,   PAD = CAIRO_EXTEND_PAD }
	Cairo::Extend is used to describe how pattern color/alpha will be determined for areas "outside" the pattern's natural area, (for example, outside the surface bounds or outside the gradient geometry). More...
typedef cairo_pattern_t	cobject
Protected Attributes inherited from Cairo::Pattern
cobject *	m_cobject

Constructor & Destructor Documentation

Gradient() [1/2]

Cairo::Gradient::Gradient ( cairo_pattern_t *  cobject, bool  has_reference = false  )

explicit

Create a C++ wrapper for the C instance.

This C++ instance should then be given to a RefPtr.

Parameters

cobject	The C instance.
has_reference	Whether we already have a reference. Otherwise, the constructor will take an extra reference.

~Gradient()

Cairo::Gradient::~Gradient ( )

override

Gradient() [2/2]

Cairo::Gradient::Gradient ( )

protected

Member Function Documentation

add_color_stop_rgb()

void Cairo::Gradient::add_color_stop_rgb	(	double	offset,
		double	red,
		double	green,
		double	blue
	)

Adds an opaque color stop to a gradient pattern.

The offset specifies the location along the gradient's control vector. For example, a linear gradient's control vector is from (x0,y0) to (x1,y1) while a radial gradient's control vector is from any point on the start circle to the corresponding point on the end circle.

The color is specified in the same way as in Context::set_source_rgb().

If two (or more) stops are specified with identical offset values, they will be sorted according to the order in which the stops are added, (stops added earlier will compare less than stops added later). This can be useful for reliably making sharp color transitions instead of the typical blend.

Parameters

offset	an offset in the range [0.0 .. 1.0]
red	red component of color
green	green component of color
blue	blue component of color

add_color_stop_rgba()

void Cairo::Gradient::add_color_stop_rgba	(	double	offset,
		double	red,
		double	green,
		double	blue,
		double	alpha
	)

Adds a translucent color stop to a gradient pattern.

The offset specifies the location along the gradient's control vector. For example, a linear gradient's control vector is from (x0,y0) to (x1,y1) while a radial gradient's control vector is from any point on the start circle to the corresponding point on the end circle.

The color is specified in the same way as in Context::set_source_rgba().

If two (or more) stops are specified with identical offset values, they will be sorted according to the order in which the stops are added, (stops added earlier will compare less than stops added later). This can be useful for reliably making sharp color transitions instead of the typical blend.

Parameters

offset	an offset in the range [0.0 .. 1.0]
red	red component of color
green	green component of color
blue	blue component of color
alpha	alpha component of color

get_color_stops()

std::vector< ColorStop > Cairo::Gradient::get_color_stops

(

)

const

Gets the color stops and offsets for this Gradient.

Since

1.4

---

The documentation for this class was generated from the following file:

• cairomm/pattern.h
